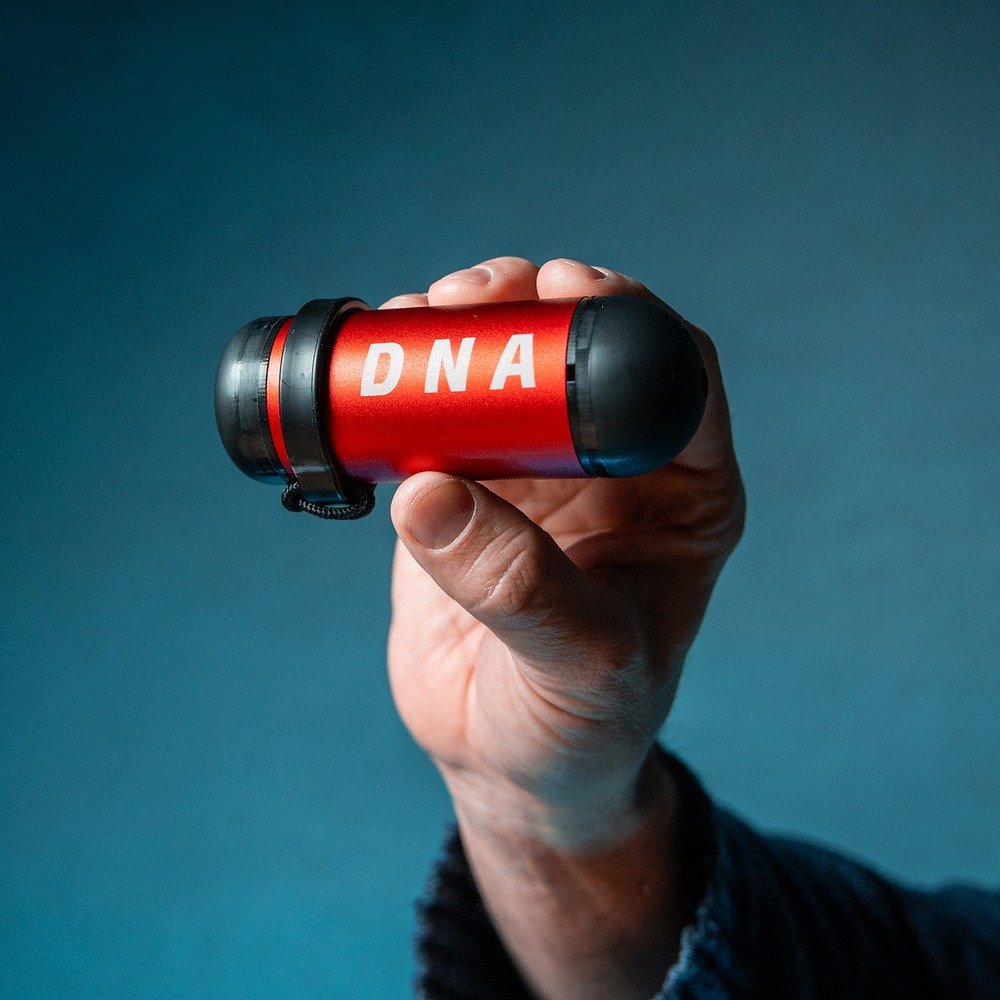

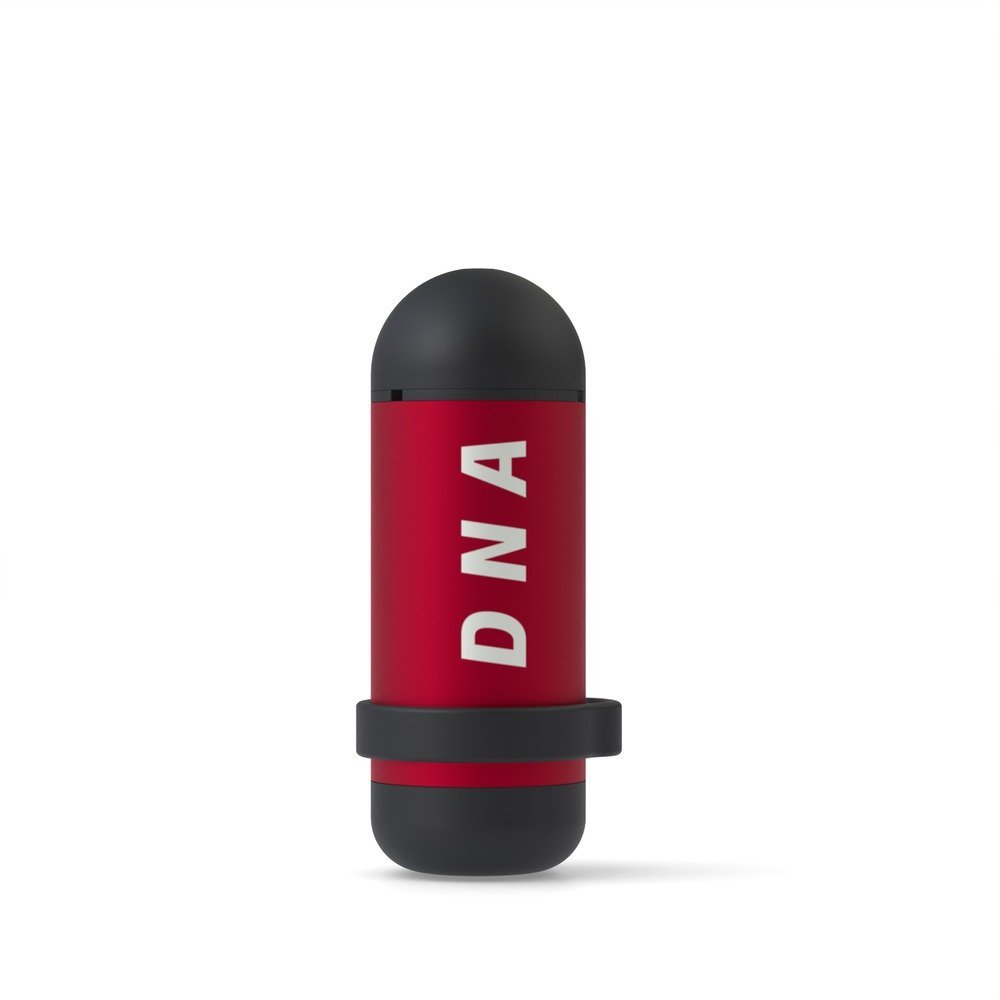

Dimensions of the analyzer: 45.6 × 111 × 40 mm (1.8 × 4.4 × 1.6 inches)

Weight: 100 g (3.5 oz)

Weight with sensor: 126 g (4.4 oz)

Range of measuring the concentration of oxygen: 0 to 100 %

Measuring temperature: 0 to +40° C (32 –104° F)

Mixture pressure: consistent with ambient pressure, in the range of 700–1100 millibars (20–32 inches of Hg) which corresponds to the standard atmosphere at an elevation in the range of 0 to 3000 m (0–10000 feet) above sea level.

Rated gas throughput: 0.2 L/min

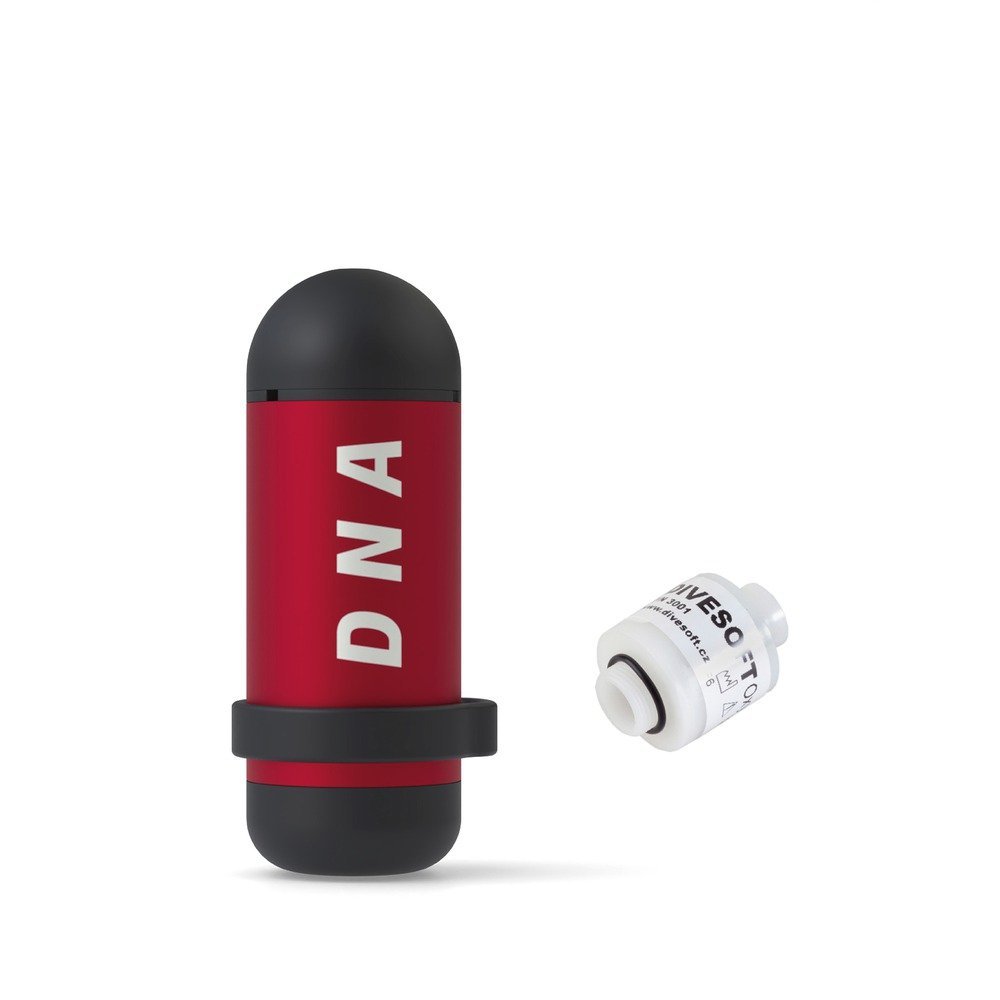

Oxygen sensor: Divesoft R-22S

Power source: CR 2450, user replaceable (the expected lifetime is 1-2 years)

The gas connection: direct contact connection to both “DIN” valve (EN 144-2) for 200/300 bars (G 5/8 thread) and M26x2 valves. Possible connection with the Divesoft professional flow limiter and connection hose.

Warranty: 24 months, 12 months on the oxygen sensor. The battery is not covered by the warranty.
