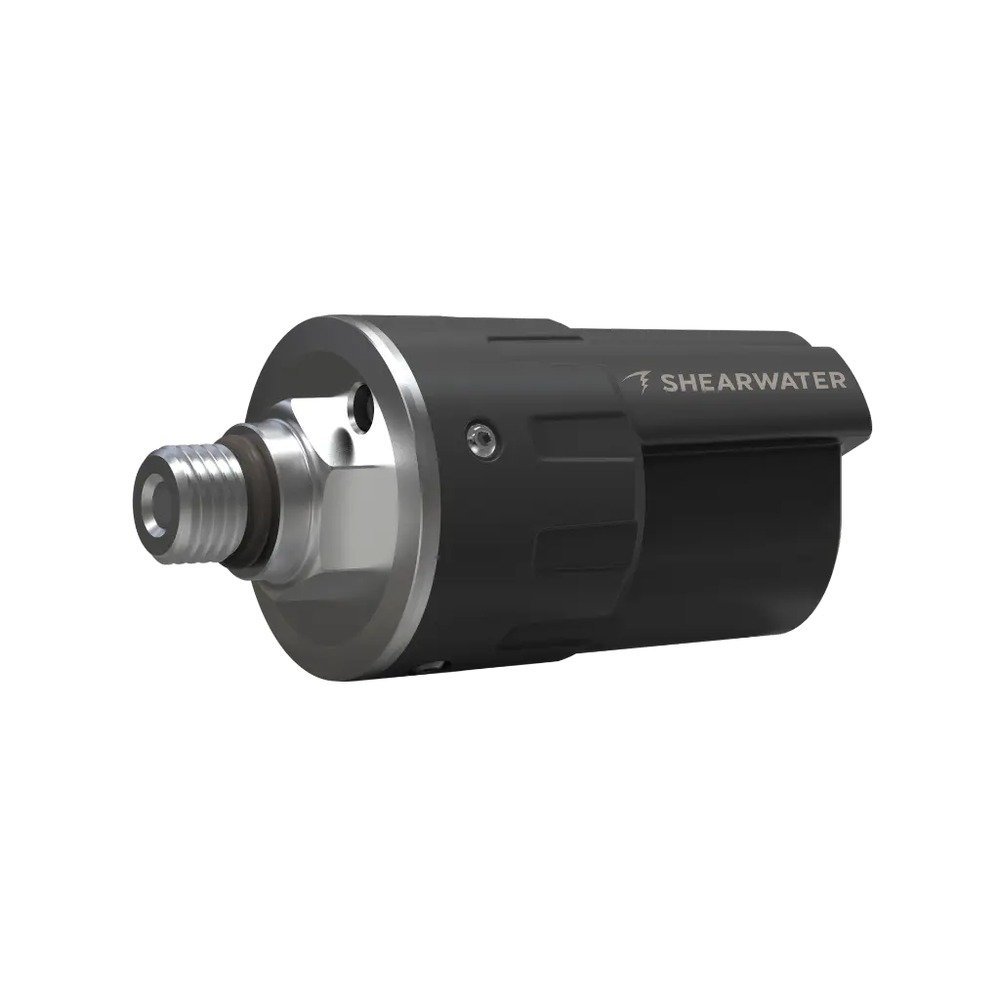

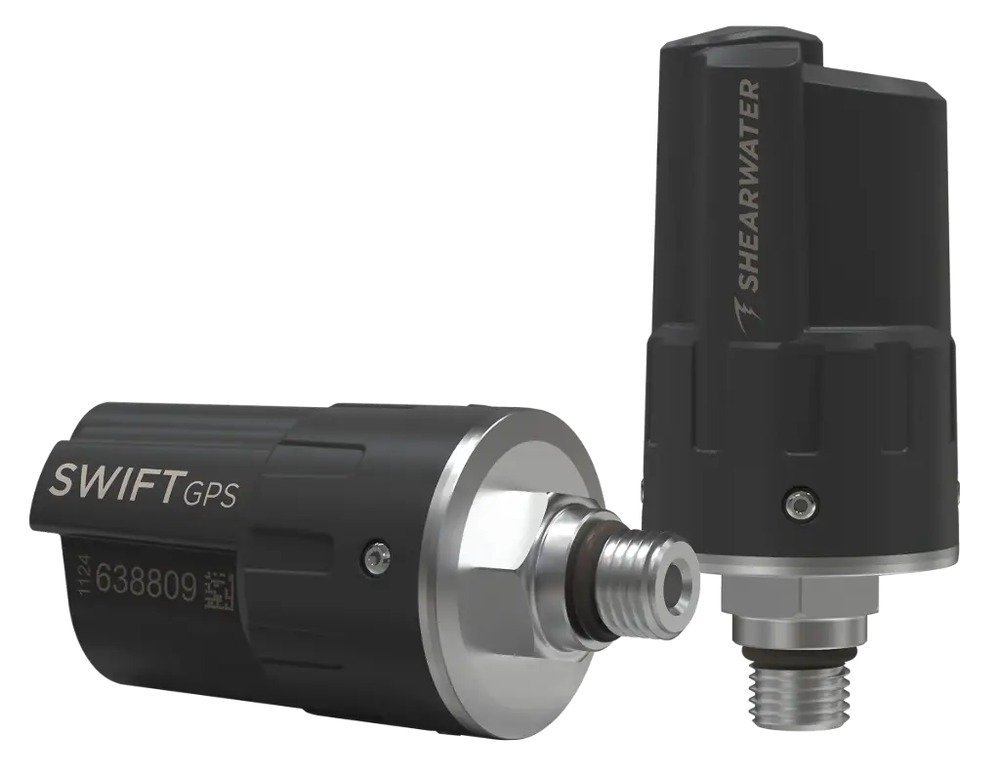

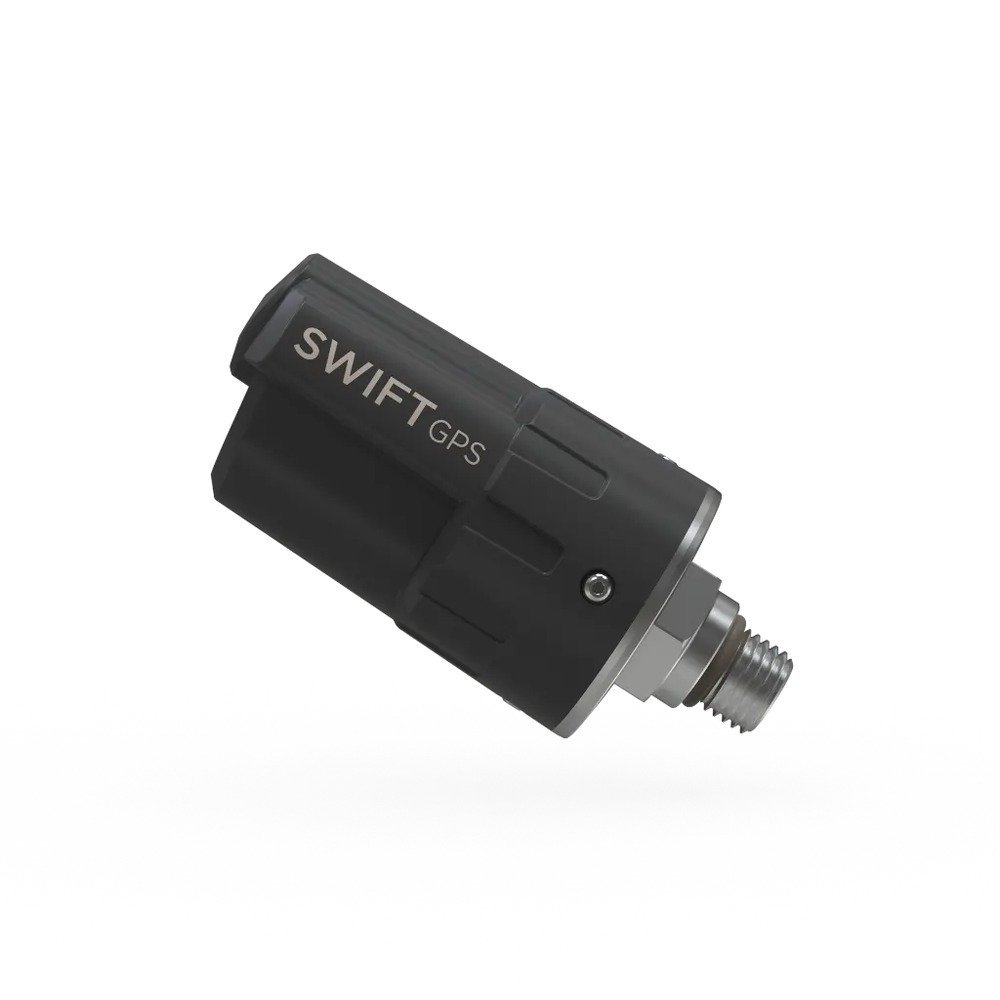

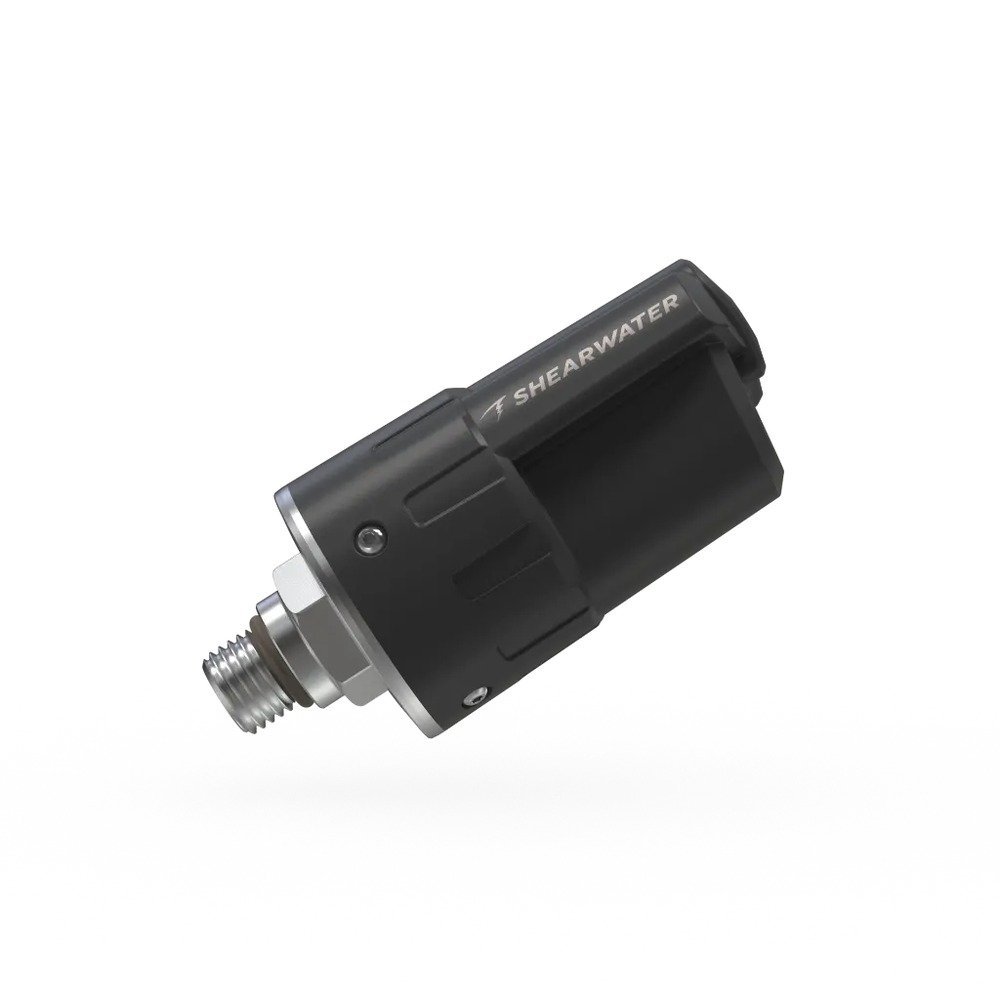

Swift GPS — GNSS transmitter for Shearwater air-integrated dive computers.

The Swift GPS captures dive entry and exit coordinates and adds map locations to your Dive Shearwater log. It works with Shearwater air-integrated computers to provide GNSS location data alongside real-time gas pressure information for accurate gas time-remaining calculations.

Key features

• Automatically capture dive entry and exit GPS coordinates and map dives in Dive Shearwater
• Provides real-time gas pressure data for air-integrated computers
• Any nearby Shearwater air-integrated computer can receive the Swift GPS signal
• If multiple transmitters are used, only one needs to include GPS
• LED status indicator and easy, tool-free installation on the first stage

Compatibility

• Compatible with all current Shearwater air-integrated dive computers
• Supported models include: Perdix 2, Petrel 3, Peregrine TX, Tern TX and NERD 2
• Teric support available in a subsequent firmware release

What appears in Dive Shearwater logs

• Location displayed on a map
• Location name when available
• Entry and exit coordinates
• Global view of all recorded dive locations

SWIFT system features

• Advanced collision-avoidance for reliable operation with multiple transmitters
• Randomized transmit intervals for simultaneous-use reliability
• LED status indicator
• Tool-free installation and removal

Technical specifications

• Depth limit: 200 m
• Operating temperature: +4°C to +34°C
• Short-term temperature (hours): -10°C to +50°C
• Long-term storage temperature: +5°C to +20°C
• Pressure port: 7/16″ -20 UNF
• Rated air pressure: 300 bar / 4350 psi
• Pressure reporting resolution: 0.14 bar / 2 psi
• Pressure reporting interval: 4.8–5.2 seconds
• HP port proof pressure: 450 bar / 6525 psi
• Accuracy: 5% full scale
• Zero offset: <3.5 bar / 50 psi
• Activation pressure: 7 bar / 100 psi
• De-activation pressure: 3.5 bar / 50 psi
• Cover screws: 1.5 mm hex, 316 SS
• Body O-ring: 24 x 1.5 mm
• HP port O-ring: AS568-904, 75A Viton

Dimensions & weight

• Size: 76 mm (L) x 34 mm (D)
• Weight: 135 g

Battery

• Battery type: CR2 3V lithium (user replaceable)
• Ships with / recommended: Panasonic CR2 Industrial Lithium
• Battery capacity: approx. 2.55 Wh
• Battery life: Up to 100 dive hours (100 one-hour dives with 20 minutes GNSS on-time before and after each dive) or up to 2 years in storage

GNSS

• Constellations: GPS L1C/A, Galileo E1B/C, BeiDou B1I
• Location resolution: 2 m
• Location accuracy (condition dependent): ~4 m
• Location reporting interval: 4.8–5.2 seconds
